What is a bin clip and how do I create one?

Bin Clip Overview

Core provides the ability to create bin clips by allowing the user to mark in / out points along the timeline of an asset. On saving the bin clip to a selected bin, the whole asset is replicated with the new in / out points saved (inside the bin, the Text view display option will show these new in / out points). When a user downloads the bin clip from within the bin, only the section of the asset between the in / out points will be downloaded. The user can add text in the clip’s Comments field (and click Save) to identify individual bin clips.

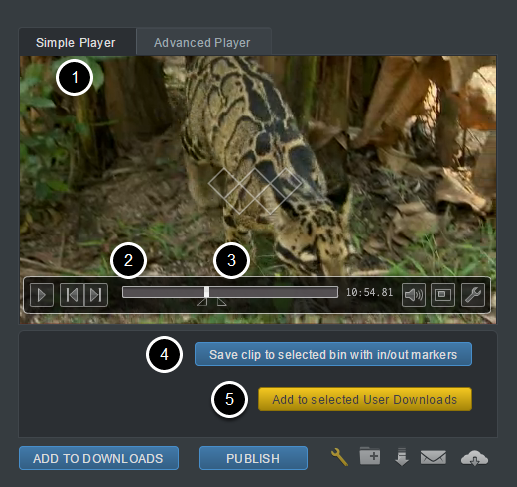

Create a New Bin Clip from an Asset (using the Simple Player)

Create a new bin (or select an existing one) to save your new bin clips into. Click on your chosen asset to open its asset details page.

  1. Select the Simple Player tab
  2. As the asset plays, the play head marker progresses along the grey timeline
  3. To start creating new bin clips drag and drop the Mark IN and Mark OUT icons to select the beginning and end of your new bin clip
  4. Save the bin clip in your selected bin by clicking Save clip to selected bin with in/out markers
  5. Alternatively, send the bin clip to your My Downloads page by clicking Add to selected User Downloads

To create additional bin clips, repeat the above process until complete. Now go to your selected bin to preview and manage your new bin clips

Note: for frame-accurate bin clip creation with advanced controls, we recommend that the Advanced Player is used. See the Create a New Bin Clip from an Asset (using the Advanced Player) step below.

Create a New Bin Clip from an Asset (using the Simple Player)

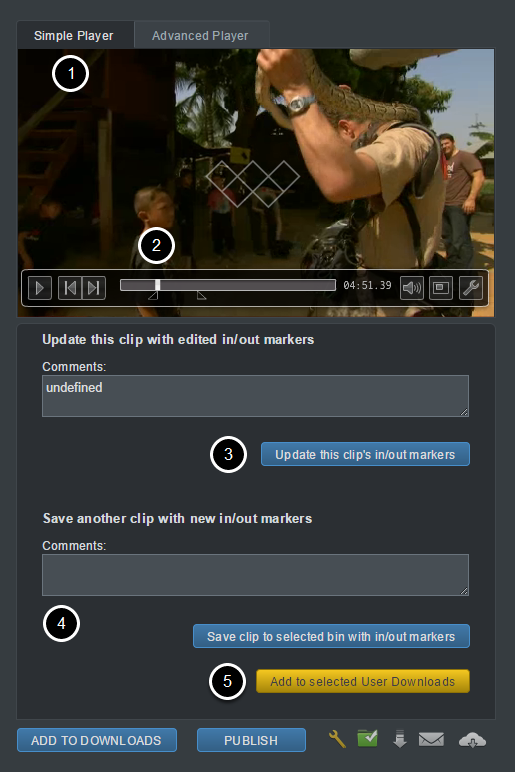

Preview and Amend your Clips (using the Simple Player)

Open the bin where you saved your new bin clips. Use the Text view display in the Options dropdown menu for ease of use, e.g. this allows you to add comments to your new bin clips by typing your text in the Comments field and clicking Save.

To amend an existing bin clip’s in and out points, open the bin clip by clicking on its thumbnail.

  1. Select the Simple Player tab
  2. Use the control bar functions, e.g. the Mark IN and the Mark OUT icons to find and select your new bin clip
  3. You can also add new Comments or amend existing ones here before clicking Update this clip with edited in/out markers to save the bin clip
  4. To create a new bin clip from the same asset from this location, follow the same procedure as above but this time click Save clip to selected bin with in/out markers to create the new bin clip in the same bin
  5. Alternatively, send the bin clip to your My Downloads page by clicking Add to selected User Downloads
Preview and Amend your Clips (using the Simple Player)

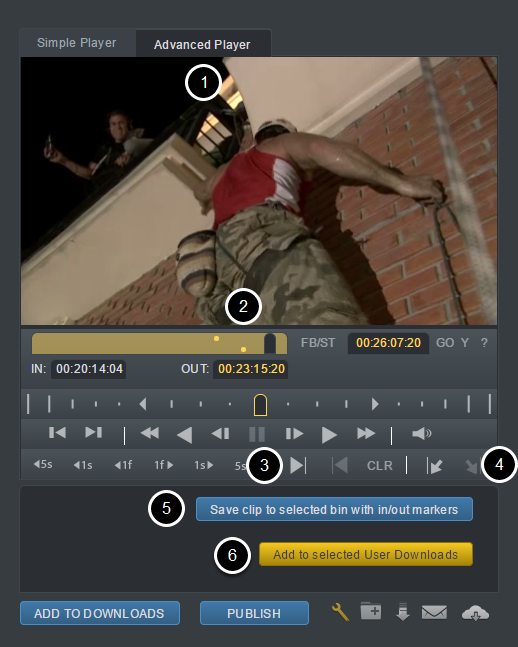

Create a New Bin Clip from an Asset (using the Advanced Player)

Create a new bin (or select an existing one) to save your new bin clips into. Click your chosen asset to open its asset details page.

  1. Select the Advanced Player tab
  2. As the asset plays, the play head marker progresses along the yellow timeline
  3. To start creating new bin clips click the Mark IN icon at the start of your new bin clip (or click the ‘i’ key on your keyboard). Click the Mark OUT ( I ) icon at the end of your new bin clip (or click the ‘o’ key on your keyboard)
  4. Click the Go To IN and Go To OUT icons to review your new bin clip before saving
  5. Save the bin clip in your selected bin by clicking Save clip to selected bin with in/out markers
  6. Alternatively, send the bin clip to your My Downloads page by clicking Add to selected User Downloads

To create additional bin clips, repeat the above process until complete. Now go to your selected bin to preview and manage your new bin clips.

Note: Before you start using the Advanced Player (for frame-accurate bin clip creation with advanced controls) see What controls and configurations does the advanced player have?

Create a New Bin Clip from an Asset (using the Advanced Player)

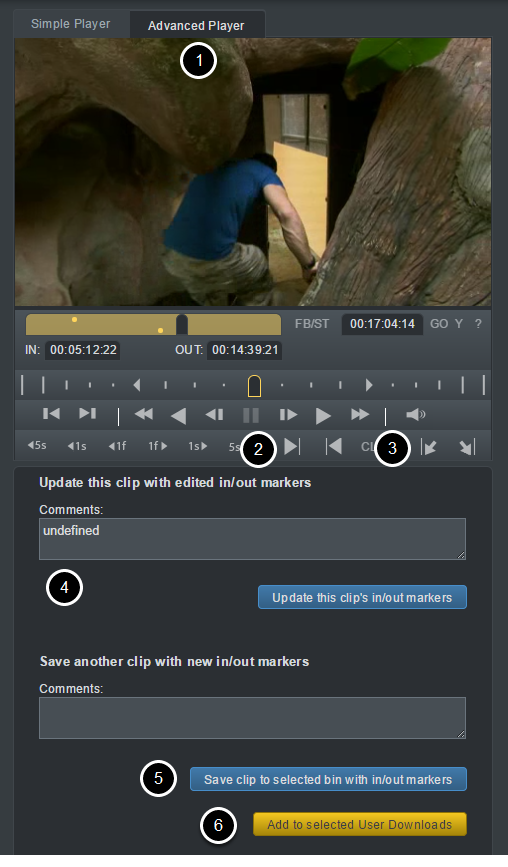

Preview and Amend your Bin Clips (using the Advanced Player)

Open the bin where you saved your new bin clips. Use the Text view display in the Options dropdown menu for ease of use, e.g. this allows you to add comments to your new bin clips by typing your text in the Comments field and clicking Save.

To amend an existing bin clip’s in and out points, open the bin clip by clicking on its thumbnail.

  1. Select the Advanced Player tab
  2. Use the control bar functions (e.g. Play, Reverse, etc.) to locate your new in point and click the Mark IN icon (or click the ‘i’ key on your keyboard) to mark it. Use the control bar functions (e.g. Play, Reverse, etc.) to locate your new out point and click the Mark OUT icon (or click the ‘o’ key on your keyboard) to mark it
  3. Click the Go To IN and Go To OUT icons to review your new bin clip before saving
  4. You can also add new Comments or amend existing ones here before clicking Update this clip's in/out markers to save the bin clip
  5. To create a new bin clip from the same asset from this location, follow the same procedure as above but this time click Save clip to selected bin with in/out markers to create the new bin clip in the same bin
  6. Alternatively, send the bin clip to your My Downloads page by clicking Add to selected User Downloads
Preview and Amend your Bin Clips (using the Advanced Player)
